Aestuver Fire Protection Panel
Fire protection panel
  • Fire protection panel

Aestuver Fire Protection Panel

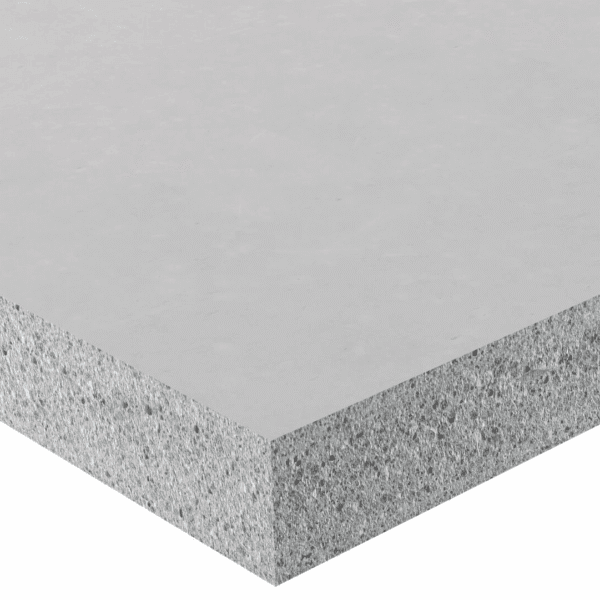

Aestuver are lightweight concrete panels reinforced with glass fibre bonded with cement, for high-quality fire protection.

– Fire protection solution for walls / ceilings, beam / column cladding, electrical and ventilation as well as special constructions

– Weather-resistant, frost-resistant and water-resistant

– Fire protection solution for environmental conditions with high climatic requirements above the components

– The smooth surface of the material enables good bonding with adhesive and other coatings

Specifications

Kategoria Value / Description
Miratimet
Miratimi teknik europian ETA-11/0458
Building material class Sipas DIN EN 13501-1 — Jo e djegshme, A1
Fire resistance IMPO FTPC pjesa 1 — Jo e djegshme
Classification of components National / European
Dimensional tolerances (at constant humidity)
Length and width ± 1 mm
Diferenca diagonale ≤ 2 mm
Thickness ± 1 mm
Specifikimet teknike
Density (ρk dry) ≈ 640 – 950 kg/m³
Flexural strength (EN 12467, 10%) ≈ 3.5 N/mm²
Water vapour diffusion resistance factor μ (EN ISO 12572) ≈ 54
Thermal conductivity λR (DIN EN 12667) ≈ 0,21 W/mK
Specific heat capacity c ≈ 0,9 kJ/kg
Elongation / Shrinkage (relative humidity change 30%, 20°C, EN 318) ± 0,1%
Equilibrium moisture (65% RH, 20°C, EN ISO 12570) ≈ 7% by weight
Compressive strength (EN 789) ≈ 9 N/mm²
Alkaliniteti (vlera e pH) ≈ 12
Flexural modulus of elasticity (EN 12467 ±10%) ≈ 3,000 N/mm²
